2010 King Air C90GTx
Description
The Beechcraft King Air C90GTx is a twin-engine turboprop aircraft produced by Beechcraft. It is an upgraded version of the C90GT. It has a maximum cruise speed of 250 knots and a range of 1,500 nautical miles. It is powered by two Pratt & Whitney Canada PT6A-135A engines, each producing 850 shp. The aircraft features a Rockwell Collins Pro Line 21 avionics suite, allowing for advanced features such as Flight Management System (FMS), Terrain Awareness and Warning System (TAWS), and Synthetic Vision System (SVS). It also includes a Honeywell Primus 1000 autopilot system and dual Garmin GNS 430 GPS/Nav/Com radios. The aircraft can accommodate up to nine passengers and has a maximum takeoff weight of 9,500 lbs.
Features
- Total Hours: 2,847
- Total Landings: 2,925
- Serial Number: LJ-1977
- Registration: N967BE
- Engine(s)
- Pratt & Whitney PT6A-135A
- Total Hours: #1 2,847 / #2 2,847
- Total Cycles: #1 2,874 / #2 2,874
- Prop Details
- Hartzell 4-Blade
- Time Since overhaul: #1 8 / #2 8

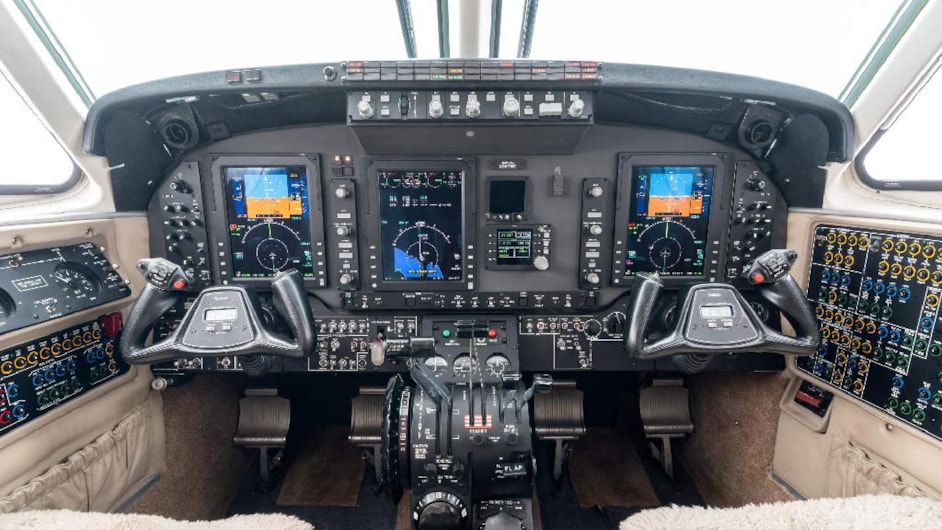

- Avionics
- Collins Pro Line 21 Avionics Suite
- VHF Comms: Dual Collins VHF-4000 Very High Frequency Communications
- NAV: Collins NAV-4000; NAV-4500 VOR/LOC/GLS/ADF/Marker Navigation System
- GPS: Dual Collins GPS-4000A w/ WAAS/LPV Global Positioning System
- FGS: Collins FGC-3000 Flight Guidance System
- FMS: Collins FMS-3000 Flight Management System
- DBU: Collins DBU-5000 Database Unit
- ADC: Dual Collins ADC-3010 Air Data Computer
- XPNDRS: Dual Collins TDR-94D; Mode S Transponders
- TCAS: TCAS I Traffic Collision Avoidance System
- TAWS: ACSS TAWS+; Class A Terrain Awareness Warning System
- DME: Collins DME-4000 Distance Measuring Equipment
- WX Radar: Collins TWR-800 Weather Radar
- ADF: Collins NAV-4000 Automatic Direction Finder
- ALT: Collins ALT-4000 Radio Altimeter
- CVR: L3 Comm FA2100; 30 Minutes Cockpit Voice Recorder
- ELT: Artex C406-2 w/ Cockpit Switch Emergency Location Transmitter
- Collins XMWR-1000 Weather Receiver
- ADDITIONAL FEATURES
- ADS-B Out Compliant
- Collins IFIS System Integrated Flight Information System
- 8.33 KHz Comms Spacing
- Collins ECH-5000 Electronic Charts
- Meggit Secondary Flight Display System
- Collins MDC-3110 Maintenance Diagnostics Computer
- Electronic Checklists Displayed on MFD
- 2nd Air Stair Cable Option
- Maintenance Status
- Phase 1-4: November 2022
- L/R Propeller Overhaul: November 2022
- Landing Gear Overhaul: November 2022
