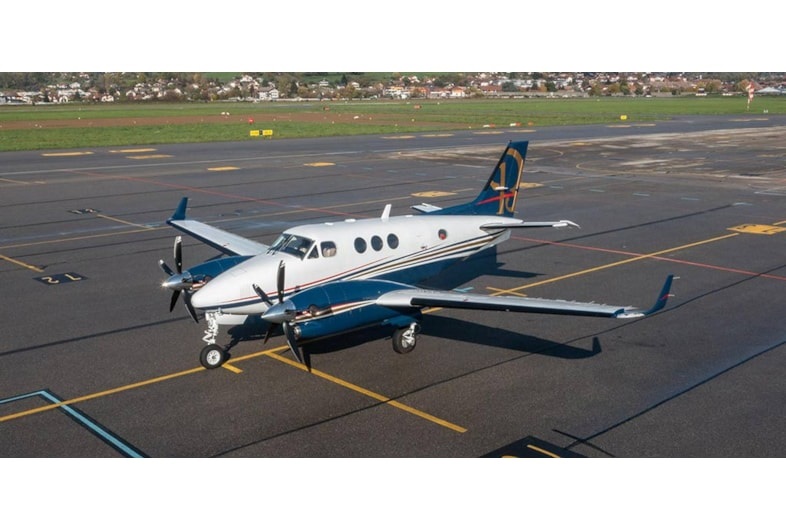

2000 King Air C90B
Description
The King Air C90B is a twin-engine turboprop aircraft produced by Beechcraft. It is part of the King Air family and was first introduced in 1984. The C90B is an improved version of the earlier C90A model. It features an increased gross weight, improved performance, and a redesigned cabin interior with better soundproofing. The C90B is powered by two Pratt & Whitney PT6A-21 turboprop engines, which produce 850 shp (shaft horsepower) each. The aircraft has a maximum speed of 280 knots (322 mph/518 km/h) and a range of 1,500 nautical miles (1,726 mi/2,780 km). It can carry up to nine passengers and has a maximum takeoff weight of 11,500 pounds (5,216 kg). The King Air C90B is used for a variety of purposes, including corporate transport, air ambulance, and cargo transport.
Features
- Airframe
- Total Hours: 3,708 (Nov 2022)
- Total Landings: 3,548
- Engine(s)
- Blackhawk XP135A
- Total Hours: #1 99 / #2 99
- Total Cycles: #1 109 / #2 109
- Programs: JSSI 100%
- Prop Details
- 5 Blade MT Props
- Avionics
- Garmin G1000 w/ SVS & GFC700AP
- Dual Integrated Radio Modules, Providing WAAS-Certified GPS; VHF Navigation w/ ILS
- VHF Communication w/ 16-Watt Transceivers & 25 khz or 8.33 khz Channel Spacing
- Dual Mode-S Transponders w/ Traffic Information Service (TIS) & (ADS-B) No Diversity
- Dual Solid State Attitude & Heading Reference Systems (AHRS)
- Three-Axis Digital Automatic Flight Control
- System
- Four Color Digital Weather Radar w/ Stabilization
- Integrated Class-B TAWS
- Standby Instrument Package
- Large-Format LCD Displays – 10-inch PFD’s; 15-Inch MFD
- All-Digital, Dual Channel Garmin Flight Control System
- Moving-Map MFD w/ Engine/Fuel Gauge Cluster
- Garmin SafeTaxi Airport Diagrams
- Modular Rack-Mounted LRU’s
- Interfaces for Existing Traffic & Lightning Sensors
- XM Satellite Weather & XM Radio
- Pilot/Copilot Audio System w/ Music Input
- Passenger Audio System w/ Intercom Capability
- Full Reversionary Display Capability
- Synthetic Vision System
- Jeppeson Charts
- Collins ADF-60
- Collins DME-42
- EVS Wiring Provisions
- Features/Options
- BLR Winglets
- 10,500lbs Gross Weight Increase
- Cleveland Wheels & Brakes
- 64 Cubic Foot Oxygen Bottles
- Cockpit Voice Recorder (CVR)
- LED Lights
